PSI Audio A14-M Broadcast

A14-M Broadcast

The broadcasters’ love

The A14-M is designed to produce the highest possible SPL and broad bandwidth in an extremely compact cabinet. It is perfect for applications with limited space that still require the best in terms of precision and reliability. Nothing else comes close.

Main Features

Power

70 + 30W

Frequency Range

56Hz – 23kHz

Max SPL

103dB

Typical listening distance

from 0.5m

100% Analog – No DSP

Flat frequency response

Perfect stereo image

Handmade tweeter

Equipped with brackets

Class A/B Amplifiers

Individually calibrated

5+1 years warranty

Handmade in Switzerland

Fast and reliable results with the A14-M Broadcast

“Have you heard?” The number one question in news and gossip does not concern the audio engineer with A14-M speakers – they have heard everything.

The sound that has earned PSI Audio the respect of sound professionals all around the world improves your results and quickens your pace. From broadcast vans to the use as surround speakers in immersive setups, the A14-M Broadcast brings the trademark PSI Audio accuracy into the most discerning and demanding environments. Speakers you can trust … from any angle.

“The A14-M is in the best sense, an inconspicuous near field monitor. Tonal balanced, high resolution detail, very good transient response and accurate positioning make it the Swiss army knife of any surround setup, small studio or OB van environment.”

Professional Audio Magazin, Germany

Handmade tweeter

What do you do when you cannot find a driver appropriate for the sonic accuracy you want to achieve with your speaker? At PSI Audio, we decided to just build our own then. The tweeter used in the A14-M is unique, our own development and built by hand in our manufacture in Switzerland. Superior to any market-bought solutions, our tweeter offers unparalleled clarity, subtlety and fidelity. It took a lot of time and effort to create this tweeter – certainly a lot more than buying one from an international supplier would have.
But the result is absolutely worth it.

Extend the low frequencies and add power

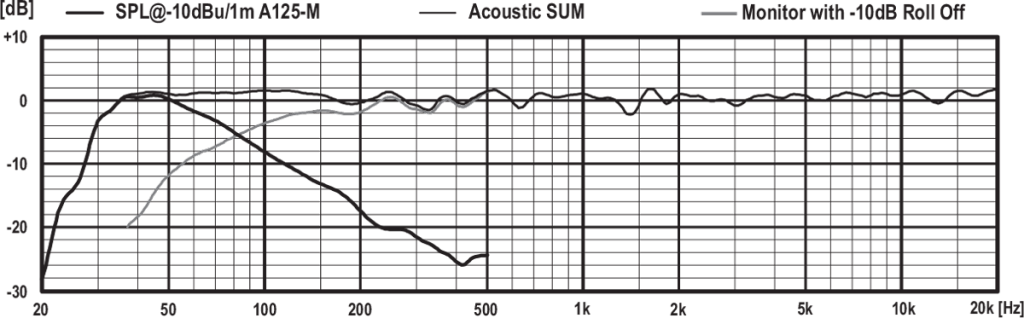

Ranging down to 56 Hz, the A14-M already impresses with a lot of transparent bass reproduction for its size. By adding one of our subwoofers, you can turn a pair of A14-M into a proper full-range system with all the clarity and precision you desire.

Add our compact Sub A125-M or our flagship full range Sub A225-M.

A14-M s3 Broadcast Technical Data

Product:A14-M Broadcast
Power RMS:70 + 30 W
Program Power:100 W
0.25 s PSI-M SPL@1m:98 dB
Short Term max SPL@1m:103 dB
Peak max SPL@1m113dB
Signal to Noise Ratio:95 dBA
Program Max SPL@1m:112 dB (pair)
Response at -6dB:56 - 23000 Hz
Tolerances:±2.5 dB (65Hz - 19 kHz)
Phase tolerances:±45° (260Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB:100° x 60° (H x V)
System:2 Way(s)
Crossover frequency:3.6 kHz
Woofer's dim. Ext. / Diaphragm:Ø147mm / Ø104mm
Tweeter's Diaphragm dim.:Ø25mm
Input Connector:1 x XLR F / 3P
Material:MDF
Dimensions W x H x D mm:163 x 243 x 170
Gross / Net Weight:5.6 / 4.9 kg
Voltage:115/230V (50-60Hz)

Flat Response

Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.

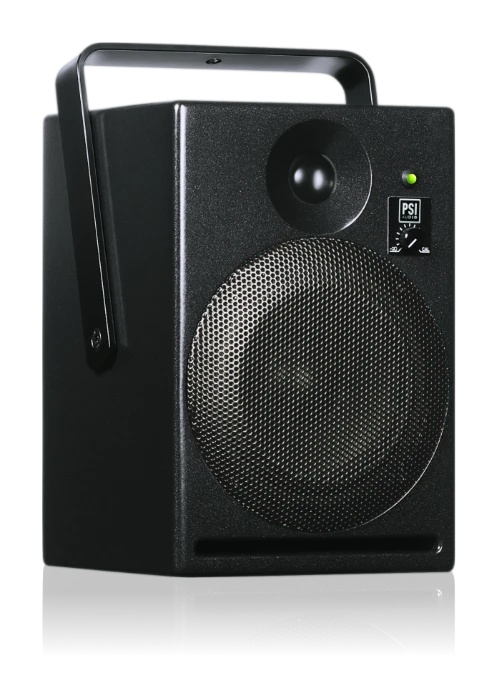

A14-M Broadcast – The smallest model of our range

This small but powerful full-range speaker with all of PSI Audio know-how, technology and features built in to a small cabinet.

The A14-M Broadcast will surprise you by what sound can come of such a small cabinet.

It is perfect for demanding users when space is an issue or in multichannel surround setups.

The BROADCAST version is equipped to be transported or mounted wherever needed.

A14-M Broadcast – Who is it for?

As our most compact speaker, the A14-M is perfect for environments with limited space while still offering a very comprehensive sonic image, especially when coupled with a subwoofer.

The A14-M is also particularly suited to enhance larger stereo setups for surround applications – our very tight tolerances guarantee a coherent sound throughout the entire model range. This makes the A14-M a particularly popular choice for rear surround speakers.

Recording / Producing
Mixing
Mastering
Broadcast
Post Production
Home listening

Handmade in Switzerland

All our products are handcrafted in Switzerland with passion and attention to detail.

Manufacturing by hand allows to match and adjust components so that tolerances cancel each other out instead of building up, as is often the case in industrial production.

Choose your colour

Choose between Studio Red, Metal Black and Pure White.

Cabinets are manufactured with great care and attention from the choice of the wood all the way through to the paintwork.

Technical Data & Documents

  • compact subwoofer A125-M
    add more power, more low end. A125-M perfectly matches an A17-M pair
  • subwoofer A225-M
    more low end (24Hz), more power for your A17-M setup.
  • gig bag
    are you travelling with your A17-M? our gig bag will perfectly protect them and you can easily carry 2 units alone. Handmade in USA.

What our users say

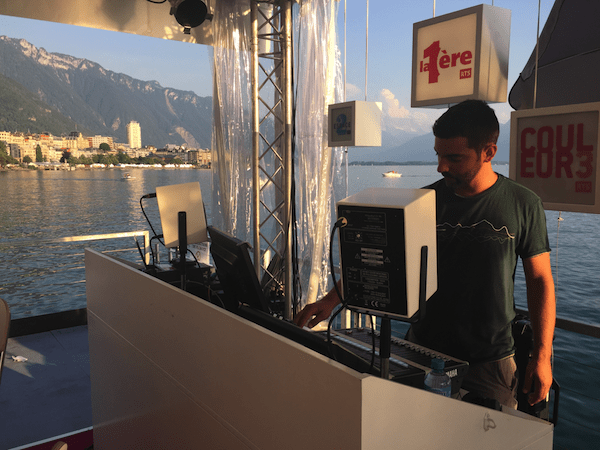

The A14-M Broadcast often saved my life in live situations where I should quickly and easily distinguish all different instruments and vocals.
Jérémy Conne – Couleur 3, RTS
