A17-M (new)

Powerful near field studio monitor

The A17-M is THE REFERENCE of near field monitors. Powerful for its size, it delivers an uncompromised quality in term of stereo image, low end control and transparency all over the bandwidth. Are you ready to step ahead?

Main Features

Power

170 + 45W

Frequency Range

44Hz – 23kHz

Peak max. SPL@1m

115dB

Typical listening distance

0.7 to 2m

100% Analog – No DSP

Flat frequency response

Perfect stereo image

Handmade Tweeter

Class A/B Amplifiers

Individually calibrated

5+1 years warranty

Handmade in Switzerland

Your success story with the A17-M

Only you know where your story begins, and who knows where it will take you? With the A17-M, you can trust your judgement every step of the way. Listen better, create faster.

You can trust your speakers, since it is their sound that has earned PSI Audio the respect of audio professionals all around the world. Building on over 40 years of experience and continuous development, the A17-M is the definitive nearfield monitor. Assess your work comprehensively without a subwoofer – or enhance the A17-M with a Sub A125-M, for example. Whatever story you need to tell, the A17-M helps you get your message across – a friend you should definitely listen to.

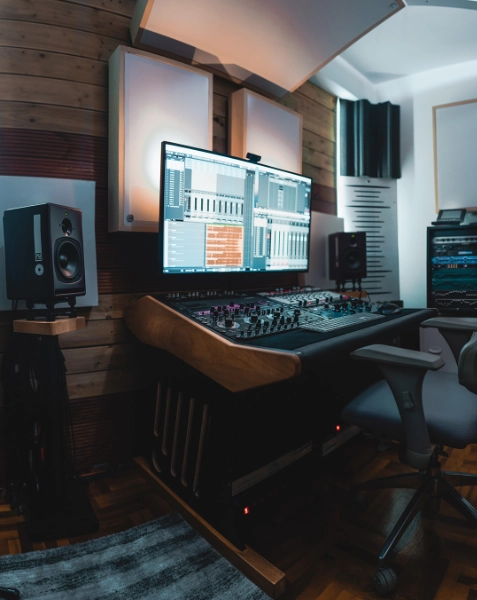

“I chose the PSI Audio – A17-M monitors because I wanted deadly accurate monitors for composing and mixing for long periods of time. Before PSI Audio, I had trouble getting what was mentioned, having tried many other brands. They are very musical but accurate, and I find them super easy and inspiring to work with.”Marko Maksimovic, music composer

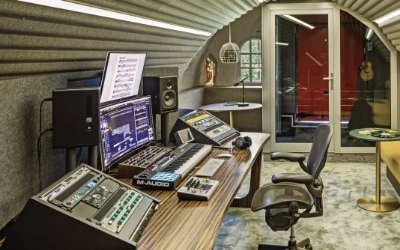

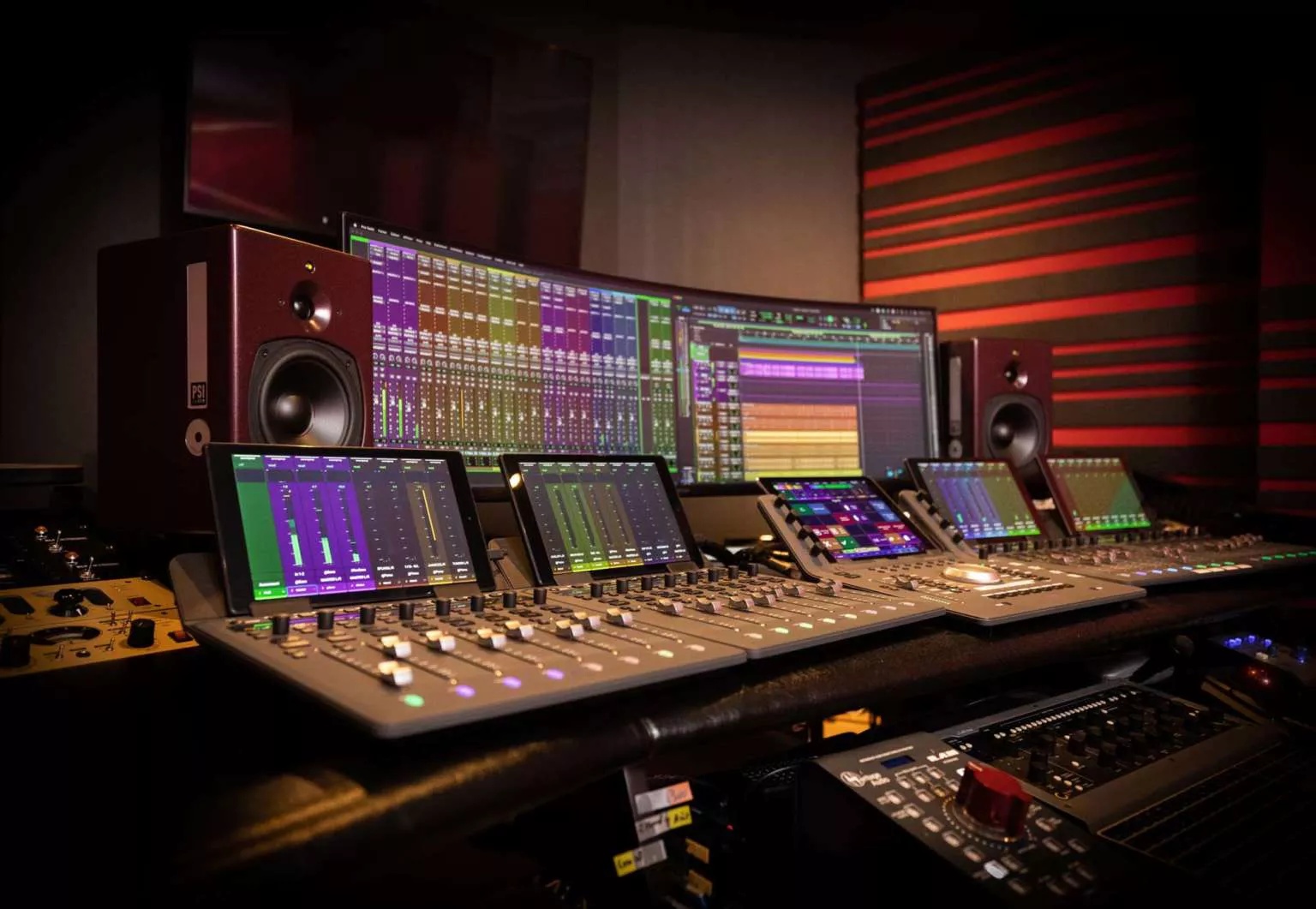

A17-M at Big Orange

“I found the top end of the new A17-M monitors to be incredibly open, dimensional and ultra-detailed, yet lovely and natural. The low-end presentation could be what really impresses me most about these monitors.”

Paul Vnuk Jr., RECORDING[Read the full article]

Perfect Stereo Image

Stereo is more than just volume differences between the left and right channels. Phase relations are paramount to determine the accurate position of a signal in the acoustic space – and hence equally important in the development of PSI Audio speakers. The accurate phase alignment provided by PSI Audio CPR technology recreates the vivid spatial listening experience as it was intended. Instrument placement, reverb envelopes, even compression artefacts are easy to identify with the phase-corrected reproduction of PSI Audio speakers.

Handmade tweeter

What do you do when you cannot find a driver appropriate for the sonic accuracy you want to achieve with your speaker? At PSI Audio, we decided to just build our own then.

The tweeter used in the A17-M is unique, our own development and built by hand in our manufacture in Switzerland. Superior to any market-bought solutions, our tweeter offers unparalleled clarity, subtlety and fidelity. It took a lot of time and effort to create this tweeter – certainly a lot more than buying one from an international supplier would have.

But the result is absolutely worth it.

Extend the low frequencies and add power

Use one of PSI Audio’s Subwoofer / LFE to add more energy and low end to your A17-M:

– Our compact Sub A125-M

or

– our full range Sub A225-M

Thanks to our Roll-Off technology, both Sub A125-M & Sub A225-M are designed to perfectly match the A17-M.

A17-M Technical Data

DataA17-M[Unit]
Potential peak power170+45W
Continuous max SPL@1 m102dB
Short term max. SPL@1m105dB
Peak max. SPL@1m115dB
Signal to noise ratio (S/N)96dBA
Bandwidth at -6dB44-23'000Hz
SPL tolerances ±2.2dB
Phase tolerances ± 45 (300 Hz – 20 kHz)deg
Dispersion (H x V)75 x 40deg
System2ways
Crossover frequency3500Hz
Woofer ext. diam.180mm
Woofer ext. diam.7.1in
W. diaphragm diam.130mm
W. diaphragm diam.5.1in
Medium ext. dim.N/Amm
Medium ext. dim.N/Ain
M. diaphragm diam.N/Amm
M. diaphragm diam.N/Ain
Tweeter ext. dim.90mm
Tweeter ext. dim.3.5in
T. diaphragm diam.27mm
T. diaphragm diam.1.06in
Dimensions W x H x D200 x 320 x 230mm
Dimensions W x H x D7.9 x 12.6 x 9.1in
Net Weight7.4Kg
Net Weight16.3lbs
Input connector1 x XLR F / 3P
Warranty5 (+1)years

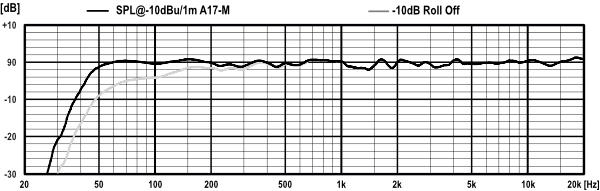

Flat Response

Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.

A17-M – the apogee of near field monitors

Incredibly powerful for its size, the A17-M is the apogee of near field monitors, providing a perfect stereo image and accurate low end.

Click on a picture to choose a product from our coherent range of monitors.

A17-M – Who is it for?

Compact in size yet stunningly powerful, the A17-M can be employed in virtually any scenario that requires accuracy and fidelity, from producing and recording to mixing and even mastering.
The A17-M is the ideal choice for studios that provide a large range of services but still prefer a compact monitoring solution.
Recording / Producing
Mixing
Mastering
Broadcast
Post Production
Home listening

Handmade in Switzerland

All our products are handcrafted in Switzerland with passion and attention to detail.

Manufacturing by hand allows to match and adjust components so that tolerances cancel each other out instead of building up, as is often the case in industrial production.

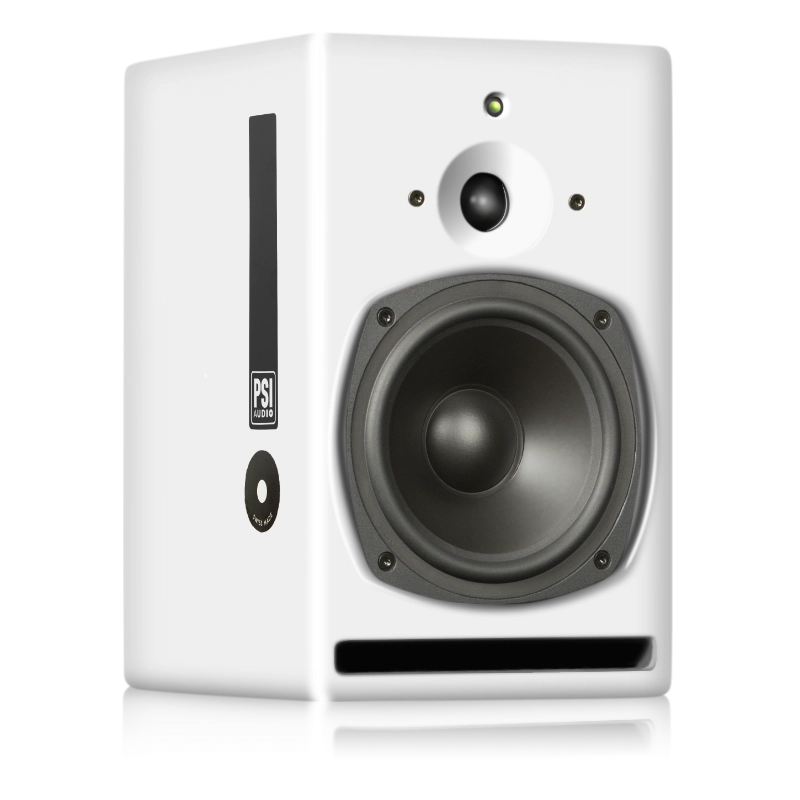

Choose your colour

Choose between Studio Red, Metal Black and Pure White.

Cabinets are manufactured with great care and attention from the choice of the wood all the way through to the paintwork.

PSI Audio A17-Ms2
PSI Audio A17-M

Technical Data & Documents

  • compact subwoofer Sub A125-M
    add more power, more low end. A125-M perfectly matches an A17-M pair
  • subwoofer Sub A225-M
    more low end (24Hz), more power for your A17-M setup.
  • gig bag
    are you travelling with your A17-M? our gig bag will perfectly protect them and you can easily carry 2 units alone. Handmade in USA.
  • grill protection
    are you using your A17-M in a public space, in broadcast use or at home? protect the tweeter and woofer with our adapted grill.
  • brackets
    do you need to use your A17-M suspended on a wall or on a fixation system? just add a bracket to fix them anywhere.

What our users say

The new A17-M is really incredible: when you close your eyes, it feels like you have a much larger speaker. The phantom center is unbelievable!
Stéphane Tornare
