A25-M

The most accurate 3-way studio monitor ever

A brand new and innovative midrange driver entirely developed and manufactured in-house brings the A25-M even closer to absolute perfection. Imagine hearing sound as naturally as in real life. The speakers disappear, you trust what you hear and let your ears work with total confidence. That’s what you get with the A25-M!

Main Features

Power

170 + 80 + 50W

Frequency Range

28Hz – 23kHz

Max SPL

114dB

Typical listening distance

from 2.5m

100% Analog – No DSP

Flat frequency response

Perfect stereo image

Handmade midrange driver AND tweeter

Tweeter-mid unit can be swivelled 90°

Class G/H Amplifiers

Individually calibrated

5+1 years warranty

Handmade in Switzerland

Your success story with the A25-M

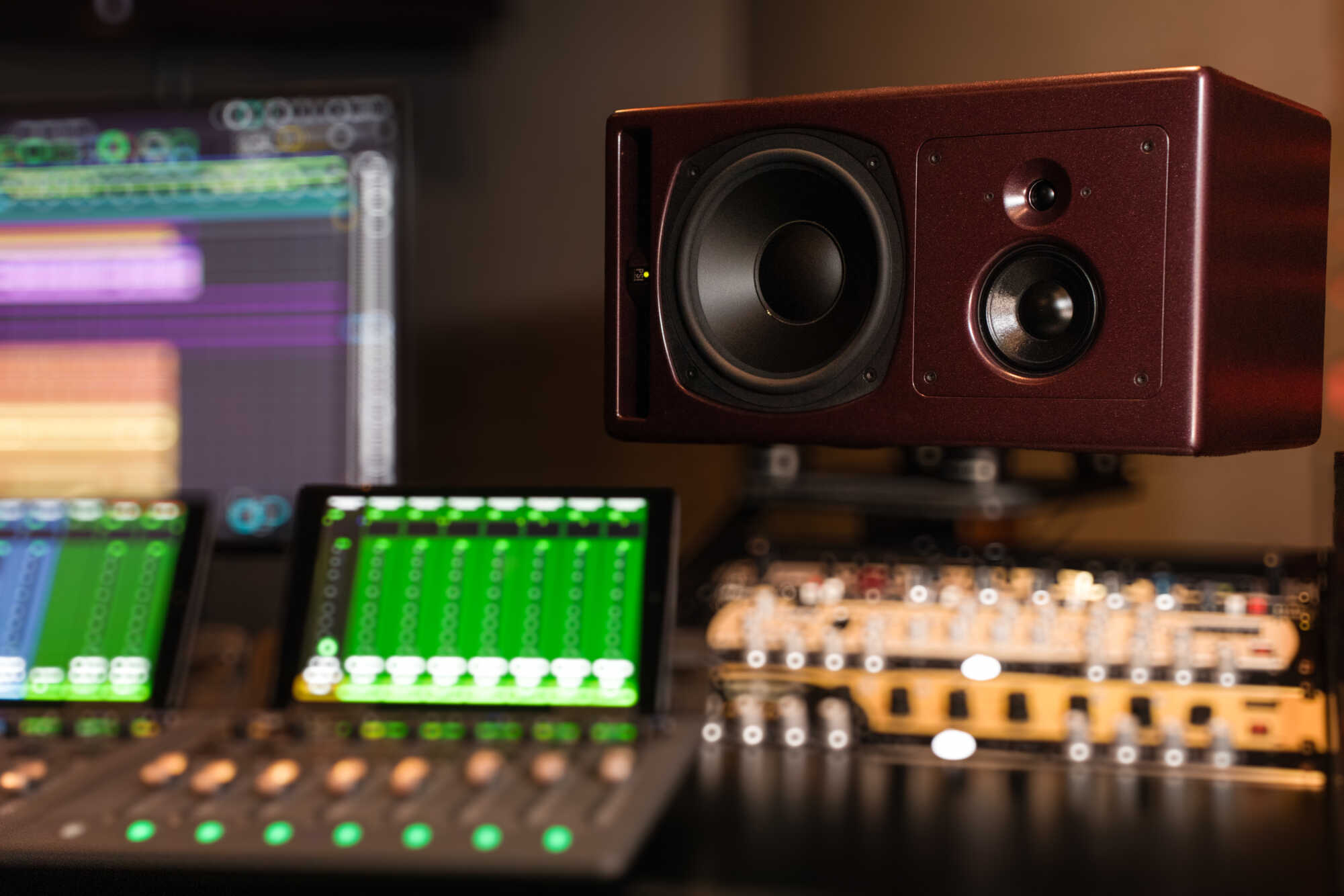

Only you know where your story begins, and who knows where it will take you? The A25-M offers you three ways to your goal; three ways to perfection. And if you need to put your speakers on their sides, the tweeter and midrange driver can be rotated to accommodate your preferences.

Then there is the sound that has earned PSI Audio the respect of audio professionals all around the world. Imagine the musicians, the instruments, the notes themselves coming to life right before your eyes, so vividly that you can almost see them, touch them, smell the wood of the guitar, feel the vibration of that string. The A25-M works very hard to make your work easy – you can just move through the natural sound stage and manipulate its elements, always in full control of what you are doing. Become one with the music through the most accurate monitor speakers on the market.

“The A25-Ms are genuinely revealing monitors that can provide great insight into the components of a mix and how they fit together, or not.

I’ve no idea if it’s the CPR or AOI (or both) that are responsible for the abilities of the A25-Ms, or if it was simply good, traditional electro-acoustic engineering that I was hearing, but it seems to me the the number one priority of any monitor design is that it enables us to hear what’s what in a mix, and to help us make the appropriate creative decisions. The A25-Ms really excel in that regard.”

Phil Ward, Sound on Sound UK

The power of EXD

Our Extended Dome Driver (EXD) keeps the advantages of both construction types while eliminating the disadvantages.

When applied to the midrange, dome drivers tend to become either unstable in the middle of the dome, or too heavy due to more rigid material being used, and they can only ever offer a very limited bandwidth in the low end. Cone drivers, on the other hand, pose a relatively large weight in their composition of membrane, dust cap, spider and suspension, which limits SPL and can cause distortion. They also restrict airflow with heavy basket designs. Even the dust cap can add distortion to the reproduction.

Our EXD midrange driver developed for the A25-M, however, combines a 4-inch, latex-and-graphite-infused paper cone membrane with a light polypropylene dome. And both are directly connected to the voice coil. With the dimensions and weight ratio of coil and membranes optimised in this way, our EXD offers higher SPL at lower distortion, pushing the new A25-M even closer towards perfect accuracy. Furthermore the new driver is built directly onto the rotatable baffle with no basket at all.

A25-M – The most accurate 3 way speaker on the market

The A25-M is PSI Audio’s flagship loudspeaker. It is a mid-field to main reference monitor with staggering precision and amazing stereo image.

The dynamic behaviour, precision frequency and phase responses have made of the A25-M a true reference in the entire industry.

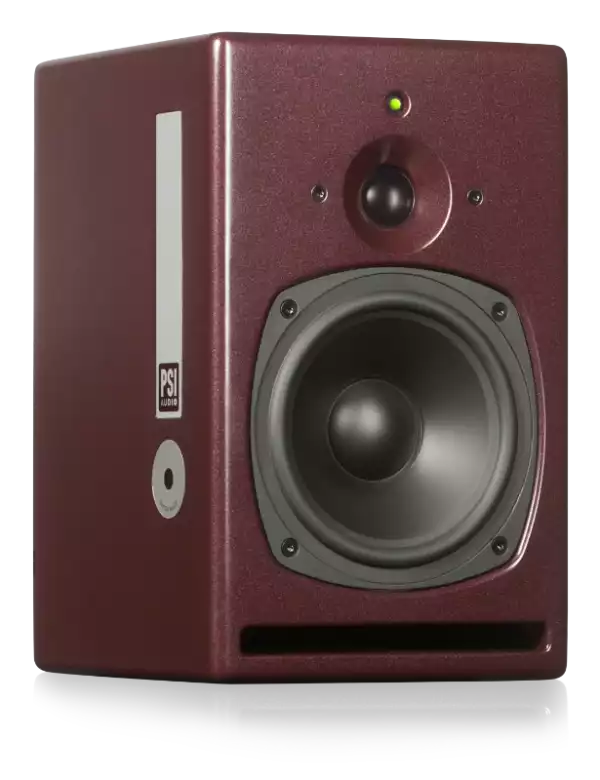

Click on a picture to choose a product from our coherent range of monitors.

A25-M (2021) Technical Data

Product:A25-M (2021)
Max RMS power:170 + 80 + 50 W
Program Power:300 W
0.25 s PSI-M SPL@1m:111 dB
Short Term max SPL@1m:114 dB
Peak max SPL@1m:124 dB
Signal to Noise Ratio:102 dBA
Response at -6dB:28 - 23000 Hz
Tolerances:±1.3 dB (38Hz - 20kHz)
Phase tolerances:±45° (150Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB:90° x 80° (H x V)
System:3 Way(s)
Crossover frequency:400Hz, 3.5kHz
Woofer's dim. Ext. / Diaphragm:Ø 258 mm / Ø 210 mm
Medium's dim. Ext. / Diaphragm:Ø 112 mm / Ø 98 mm
Tweeter's dim. Ext. / Diaphragm:Ø 100 mm / Ø 25 mm
Input Connector:1 x XLR F / 3P
Material:MDF
Dimensions W x H x D mm:320 x 590 x 380
Gross / Net Weight:28.3 / 25.8 kg

Flat Response

Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.

Extend the low frequencies and add power

When used with one of our subwoofers, the A25-M will transform in an amazing 4-way system, with ultra precise control on all the frequencies, from very low until the highest notes:

Add our compact Sub A125-M (Two units are required to match SPL max of A25-M) or our full range Sub A225-M.

A25-M – Who is it for?

The A25-M is the real thing, its immaculate reproduction easily qualifies this speaker for every application that requires absolute accuracy – particularly mastering and sophisticated mixing.

Since the A25-M plays back source material with such natural clarity, it is also perfectly suited for particularly demanding personal listening environments.

Provided enough room to allow an appropriate listening distance, the A25-M can be used for pretty much everything.

Recording / Producing
Mixing
Mastering
Broadcast
Post Production
Home listening

Handmade in Switzerland

All our products are handcrafted in Switzerland with passion and attention to detail.

Manufacturing by hand allows to match and adjust components so that tolerances cancel each other out instead of building up, as is often the case in industrial production.

Choose your colour

Choose between Studio Red, Metal Black and Pure White.

Cabinets are manufactured with great care and attention from the choice of the wood all the way through to the paintwork.

Technical Data & Features

  • compact subwoofer A125-M
    more low end (28Hz), more power for your A25-M setup..
  • subwoofer A225-M
    add more power, more low end. A225-M perfectly matches an A25-M pair
  • grill protection
    are you using your A25-M in a public space, in broadcast use or at home? protect the tweeter and woofer with our adapted grill.
  • brackets
    do you need to use your A25-M suspended on a wall or on a fixation system? just add a bracket to fix them anywhere.
  • Towersonic T-S1B
    adjustable quality speaker stand dedicated to A21-M and A25-M

What our users say

I use my pair of A25-M as the primary monitors every day.  They bring a clarity to the sonic picture that I struggle to hear with any other monitors.  I know that I can always trust them to get an accurate translation anytime I pull up a new mix or mastering session.
Jarin Bressler  – Cider Mountain Studio
