A214-M
Powerful active center monitor
The A214-M is designed as the ideal centre speaker for surround systems. Its incredible power is optimised to satisfy the requirements of post-production and film mixing suites.
Main Features
Power
280 + 45W
Frequency Range
53Hz – 23kHz
Peak max. SPL@1m
117dB
Typical listening distance
1.2 to 3.5m
100% Analog – No DSP
Flat frequency response
Perfect stereo image
True D’Appolito design
Monitor can be swivelled 90°
Class G/H Amplifiers
Individually calibrated
5+1 years warranty
Handmade in Switzerland
The perfect immersion in your studio
Only you know where your story begins, and who knows where it will take you? The A214-M can help you define that “where” – by enhancing your surround setup with an optimised centre speaker.
The sound that has earned PSI Audio the respect of audio professionals all around the world is primarily defined by accuracy and hence its natural reproduction, playing back sound without altering it. The A214-M perfectly translates these qualities into a speaker ideally suited for the central position in immersive audio applications. Get all the fine details of the voices in the dialogue, hear that little rasp, that hint of a lisp introduced by the compressor. Start hearing if anything is just slightly off in the voices immediately, identify the source and create better results in less time. The A214-M gives you all the information you need.
“The A214-M is the perfect solution for a center speaker in my setup.
The horizontal design leaves enough space for a large display.
In addition, there is of course the outstanding sonic precision, as you would expect from PSI Audio.”
Christian Schäppi, Soundengineer.ch
True D’Appolito
The 214-M was developed to be a compact central speaker with sound pressure maximized more than bandwidth.
A tweeter and 2 woofers in D’Appolito configuration in an extremely compact cabinet but capable of astonishing sound pressure levels.
A214-M – The powerful centrepiece
The A214-M is the ideal centre speaker for surround systems. Its power and precision make it the perfect choice for discerning post-production studios and film mixing suites.
Most common surround setup: A21-M as L+R, A14-M as surround, A214-M as center, Sub A225-M as LFE.
Thanks to our phase compensation on the whole range of monitors, these can be mixed and matched in any immersive setup.
A214-M Technical Data
Data | A214-M | [Unit] |
---|---|---|
Potential peak power | 280 + 45 | W |
Continuous max SPL@1 m | 104 | dB |
Short term max. SPL@1m | 108 | dB |
Peak max. SPL@1m | 117 | dB |
Signal to noise ratio (S/N) | 96 | dBA |
Bandwidth at -6dB | 53-23'000 | Hz |
SPL tolerances | ±2.0 | dB |
Phase tolerances | ± 45 (300 Hz – 20 kHz) | deg |
Dispersion (H x V) | 80 x 40 | deg |
System | 2 | ways |
Crossover frequency | 1800 | Hz |
Woofer ext. diam. | 147 (2x) | mm |
Woofer ext. diam. | 5.8 (2x) | in |
W. diaphragm diam. | 104 (2x) | mm |
W. diaphragm diam. | 4.1 (x2) | in |
Tweeter ext. dim. | 100 | mm |
Tweeter ext. dim. | 3.9 | in |
T. diaphragm diam. | 27 | mm |
T. diaphragm diam. | 1.06 | in |
Dimensions W x H x D | 166 x 446 x 200 | mm |
Dimensions W x H x D | 6.6 x 17.6 x 7.9 | in |
Net Weight | 10.5 | Kg |
Net Weight | 23.1 | lbs |
Input connector | 1 x XLR F / 3P | |
Warranty | 5 (+1) | years |
Flat Response
Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.
A214-M – The perfect monitor for surround setups
The A214-M is primarily designed as a centre speaker for surround systems. Its power is optimized to satisfy the requirements of post-production and film mixing suites. The small cabinet allows it to be used in surround systems where space is and issue such as below a screen.
A214-M – Who is it for?
Wherever a centre speaker is required, that is where the A214-M belongs. Surround mixing setups of any sort from 5.1 systems to sophisticated immersive audio constructions, a centre speaker is usually required. The A214-M fills this very position perfectly and integrates well with other PSI Audio speakers to create a consistent listening line-up.
Handmade in Switzerland
All our products are handcrafted in Switzerland with passion and attention to detail.
Manufacturing by hand allows to match and adjust components so that tolerances cancel each other out instead of building up, as is often the case in industrial production.
Choose your colour
Choose between Studio Red, Metal Black and Pure White.
Cabinets are manufactured with great care and attention from the choice of the wood all the way through to the paintwork.
Technical Data & Documents
What our users say

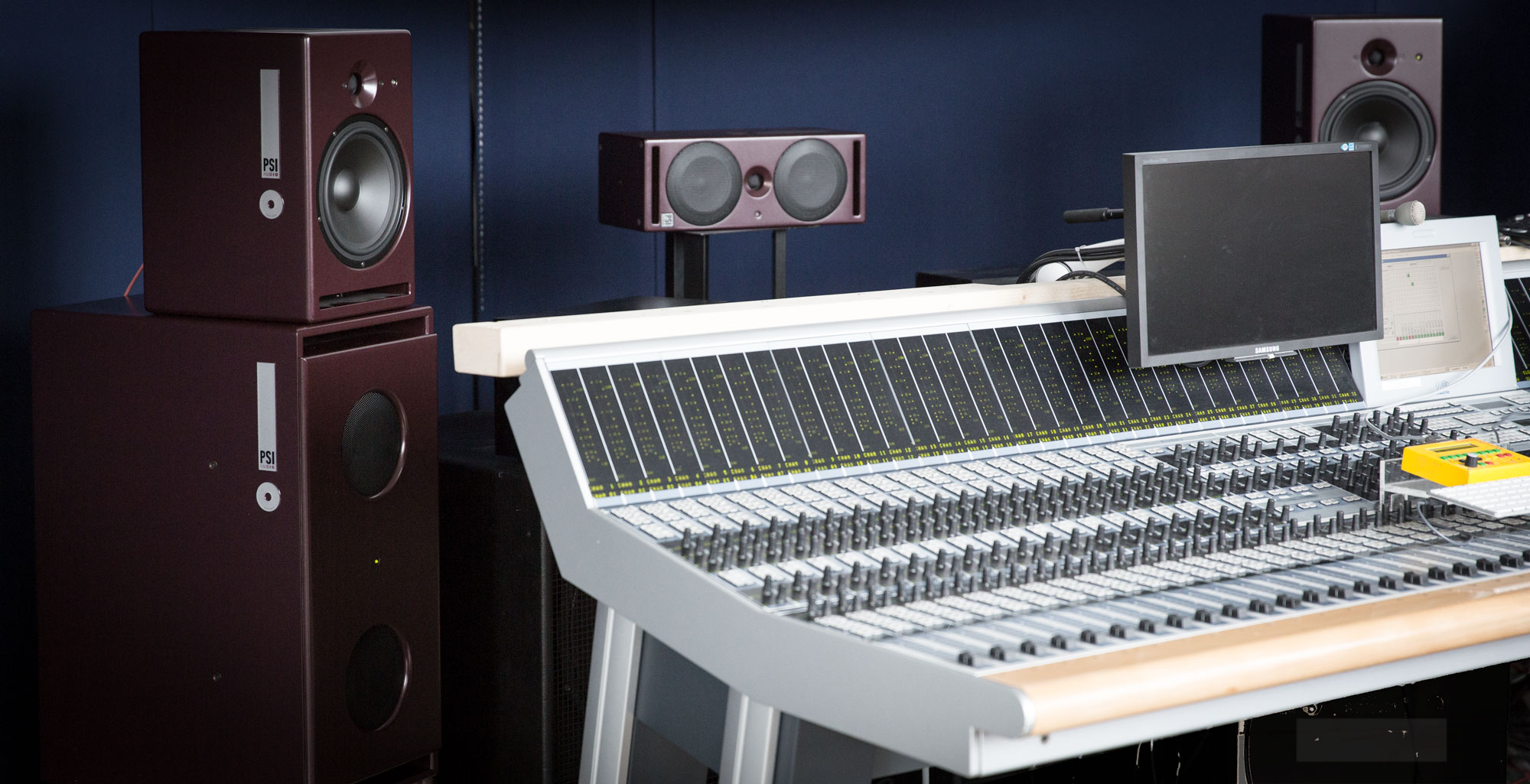

The A214-M is very identical as the A21-M in terms of power but has the advantage to be installed in horizontal position to gain space under the screen.
H-P Gutjahr – KVV Studio
