Three-way studio monitor perfection
“Swiss speaker gurus PSI Audio have never failed to impress us with their technical innovations, and their latest model is no exception!
The natural details of female voices and higher‑pitched acoustic instruments, if they have survived the tracking and mixing processes, are reproduced spectacularly. And if they haven’t survived the tracking and mixing processes, the problems are obviously revealed.
Phil Ward, Sound on Sound UK

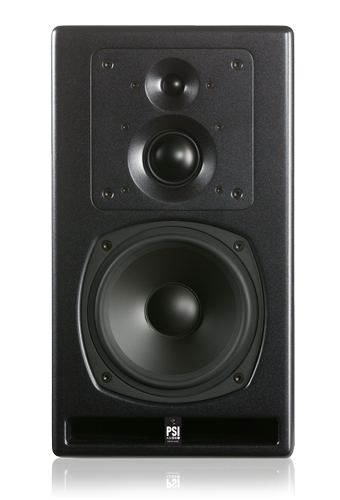

A23-M – The perfect compact sized 3-way studio monitor
The A23-M is PSI Audio’s new member. It is a compact 3-way mid-field active studio monitor with staggering precision and amazing stereo image.
The dynamic behavior, precision frequency and phase responses have made of the A23-M a true reference in the entire industry.
|Power RMS:||140 + 70 + 50 W|
|Program Power:||300 W|
|Input Impedance:||Sym, 10k Ohms|
|Sensivity for 100 dB @ 1m:||0.775 V|
|Self-generated noise, 1m f-s||8 dBA|
|Continuous Max SPL@1m:||109 dB|
|Input Overload:||24 Vpp|
|Program Max SPL@1m:||120 dB (pair) / 123 dB peak|
|Response at -6dB:||34 - 23000 Hz|
|Tolerances:||±1.5 dB (39Hz - 20kHz)|
|Distortion THD:||less than 1% (100Hz-20kHz)|
|Phase tolerances:||±45° (220Hz - 20kHz)|
|Dispersion (P.N. 4 - 16 kHz) at -6 dB:||40° x 20° (H x V)|
|Crossover frequency:||620Hz, 3.2kHz|
|Woofer's dim. Ext. / Diaphragm:||Ø 210 mm / Ø 170 mm|
|Medium's dim. Ext. / Diaphragm:||Ø 120 mm / Ø 56 mm|
|Tweeter's dim. Ext. / Diaphragm:||Ø 100 mm / Ø 25 mm|
|Connectors:||1 x XLR F / 3P|
|Signal input:||1=GND, 2=(+), 3=(-)|
|Dimensions W x H x D mm:||280 x 500 x 340|
|Gross / Net Weight:||18.0 / 20.2 KG|
|Consumption Standby-Idle-Max:||1.8 - 8 - 200 W|
|Mean / Max Humidity:||less 75% / less than 90%|
|External Temperature:||5 - 40°C|
- compact subwoofer A125-M
more low end (28Hz), more power for your A23-M setup..
- subwoofer A225-M
add more power, more low end. A225-M perfectly matches an A23-M pair
- grill protection
are you using your A23-M in a public space, in broadcast use or at home? protect the tweeter and woofer with our adapted grill.
do you need to use your A23-M suspended on a wall or on a fixation system? just add a bracket to fix them anywhere.
- Towersonic T-S1B
adjustable quality speaker stand dedicated to A21-M, A23-M and A25-M
