A17-M – Powerful near field studio monitor 2018-03-01T13:44:39+00:00

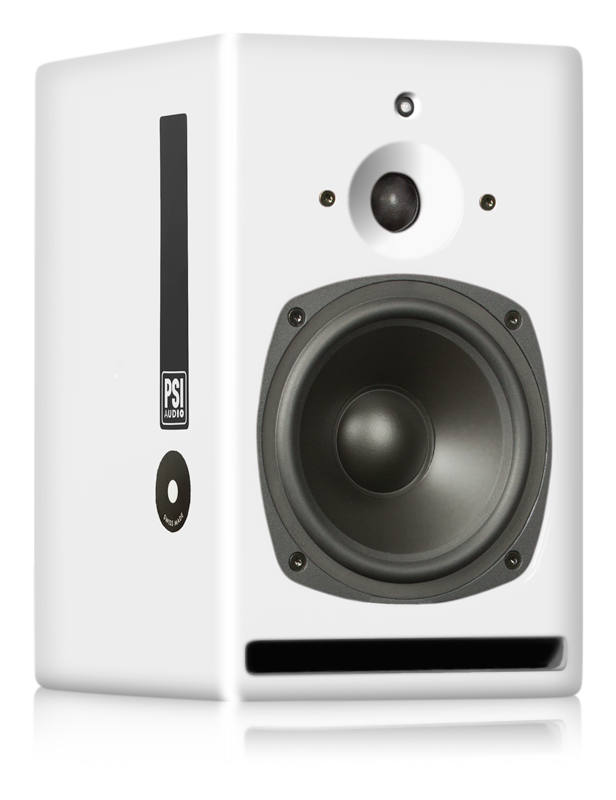

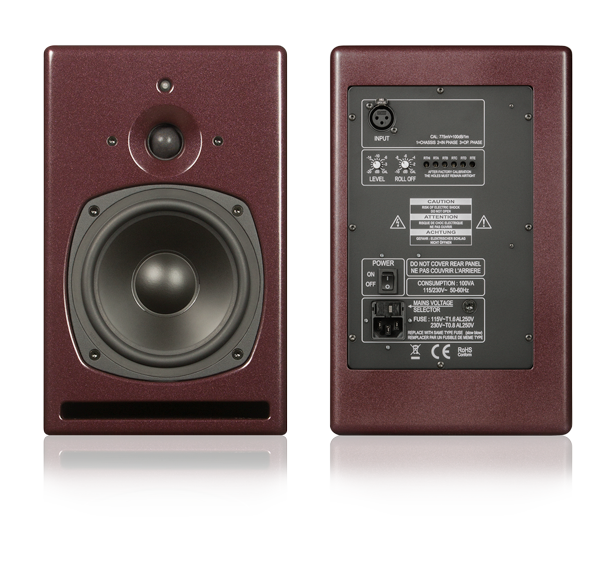

PSI Audio A17-M Active studio monitor

A17-M

Powerful near field studio monitor

“Performance far higher than similar sized monitors – tonally extremely accurate and neutral.”

“These speakers are extraordinary and deliver a level of performance and accuracy that vanishingly few two‑way designs can match, and which would shame a great many three‑way offerings. Auditioning is highly recommended for serious high‑end monitoring applications.
Hugh Robjohns, Sound on Sound UK

Main Features

Power: 80 + 40W
Frequency Range: 43Hz – 23kHz
SPL Max: 104dB
100% Analog – No DSP
Flat frequency response
Phase compensated for a better stereo image
individually calibrated
Typical listening distance: from 1m
5 years warranty
Handmade in Switzerland

Extend the low frequencies and add power

Use one of PSI Audio’s Subwoofer / LFE to add more energy and low end to your A17-M:
– Our compact Sub A125-M
or
– our full range Sub A225-M

Thanks to our Roll-Off technology, both Sub A125-M & Sub A225-M are designed to perfectly match the A17-M.

PSI Audio A125-M SPL Graphic

A17-M – the apogee of near field monitors

Incredibly powerful for its size, the A17-M is the Apogee of near field monitors,
providing a perfect stereo image and accurate low end.
Click on a picture to choose a product from our coherent range of monitors.

Technical Data & Documents

Product:A17-M
Power RMS:80 + 40W
Program Power:120W
Input Impedance:Sym, 10k Ohms
Sensivity for 100 dB @ 1m:0.775 V
Signal to Noise Ratio:96 dBA
Continuous Max SPL@1m:104 dB (single)
Input Overload:24 Vpp
Program Max SPL@1m:115 dB (pair)
Response at -6dB:43 - 23000 Hz
Tolerances:±2.5 dB (50Hz - 20kHz)
Distortion THD:less than 1.5% (100Hz-12kHz)
Phase tolerances:±45° (180Hz - 20kHz)
Dispersion:90° x 90° (H x V)
System:2 Way(s)
Crossover frequency:3.0 kHz
Woofer's dim. Ext. / Diaph.:Ø175 mm / Ø130 mm
Tweeter's dim. Ext. / Diaph.:Ø100 mm / Ø25 mm
Connectors:1 x XLR F / 3P
Signal input:1=GND, 2=(+), 3=(-)
Material:MDF
Dimensions W x H x D mm:200 x 320 x 230
Gross / Net Weight:9.5 / 8.4 kg
Voltage:115/230V (50-60Hz)
Mean / Max Humidity:less than 75% / less than 90%
External Temperature:5 - 40°C



Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet.
A proof of quality.


On special request, we can customize your speaker with any RAL color.
Please ask us directly.

  • compact subwoofer Sub A125-M
    add more power, more low end. A125-M perfectly matches an A17-M pair

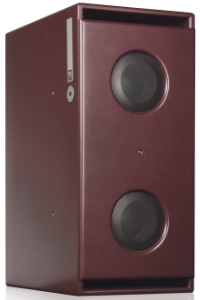

  • subwoofer Sub A225-M
    more low end (24Hz), more power for your A17-M setup.
  • gig bag
    are you travelling with your A17-M? our gig bag will perfectly protect them and you can easily carry 2 units alone. Handmade in USA.

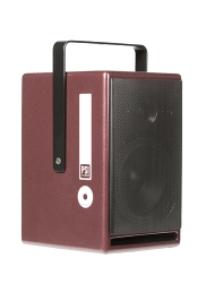

  • grill protection
    are you using your A17-M in a public space, in broadcast use or at home? protect the tweeter and woofer with our adapted grill.
  • brackets
    do you need to use your A17-M suspended on a wall or on a fixation system? just add a bracket to fix them anywhere.

What our users say

The A17-M is the best near field monitor I’ve ever tested. It’s the perfect all-round monitor for mixing in my studio or outside.
Wes Maebe
